Home > Shop > SIGHTS/OPTICS > SCOPES > RIFLE > 944-LP-P3
Product Description

Combines parallax compensation, illuminated reticle control and 1/4MOA or centimeter clicks, resulting in one of the most sophisticated, complete scopes ever built. There are two elevation adjustment options: Option One is calibrated to 0.1 Mil click values. Option Two is calibrated in 1/4MOA click values. Color-coded window indicators graphically illustrate the reticle's position within the overall adjustment travel, preventing the shooter from becoming "lost" within the adjustment range. The entire adjustment range can be covered in just two turns of the elevation knob, while the entire 3-12x magnification range is covered in just one-half turn (180 degrees).

Parallax adjustment is located in its own separate turret, as are the illuminated reticle controls. The reticle brightness is fully adjustable with 11 graduated settings allowing precise selection relative to ambient light. As with all Schmidt & Bender illuminated reticles, it turns off between settings saving battery power and allowing you to easily return to a pre-selected illumination level. Available with the P3, P4, or P4 Fine reticles.

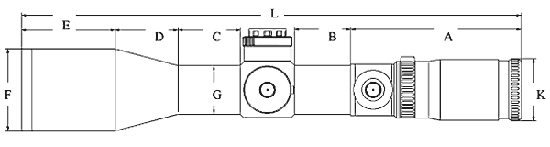

Scmidt Bender Scope Dimensions

Dimensions (mm):
A
118
B
38.5
C
50
D
43.5
E
58
F
57
G
34
H
43
L
345

Optical Data:
Magnification: 3 - 12x
Field of view @ 100m: 10.2m - 3.1m
Exit pupil: 14.3mm - 4.3mm
Eye relief: min 85mm
Twilight factor: 8.5 - 24.5
Light transmission: min 90% day & night
Diopter setting: +2 to -3
Elevation Adjustment (option 1):
Elevation increments: 1cm (0.1Mrad)
Elevation range: 220cm at 100m
Elevation Adjustment (option 2):
Elevation increments: 1/4 MOA
Elevation range: 56 MOA at 100m
Windage Adjustment (option 1):
Windage increments: 1cm per click
Windage range: ±60cm
Windage Adjustment (option 2):
Windage increments: 1/4 MOA per click
Windage range: ±14 MOA
General Data:
Parallax adjustable from 50m to infinity
Reticle Illumination:
Settings 1-11: For use in low light conditions
Battery: CR2032, 100+ hour life. Illumination is switched off automatically after six hours to conserve battery
Weight: Waterproof to 3m, 300 mbar inner pressure
Waterproof to 3m, 300 mbar inner pressure
Reticles:
P3, P4, P4 Fine
Construction:
Aluminum tube, 34mm without rail
Hard anodized black surface
Reticle in first focal plane
Schmidt & Bender PMII 3-12x50 LP P4 Fine Illuminated Reticle.
Manufacturer: Schmidt Bender
Item#: 944-LP-P3
Out of Stock
$3,099.00
Quantity
Prices for internet orders only.
Not all products available in store.
